Description

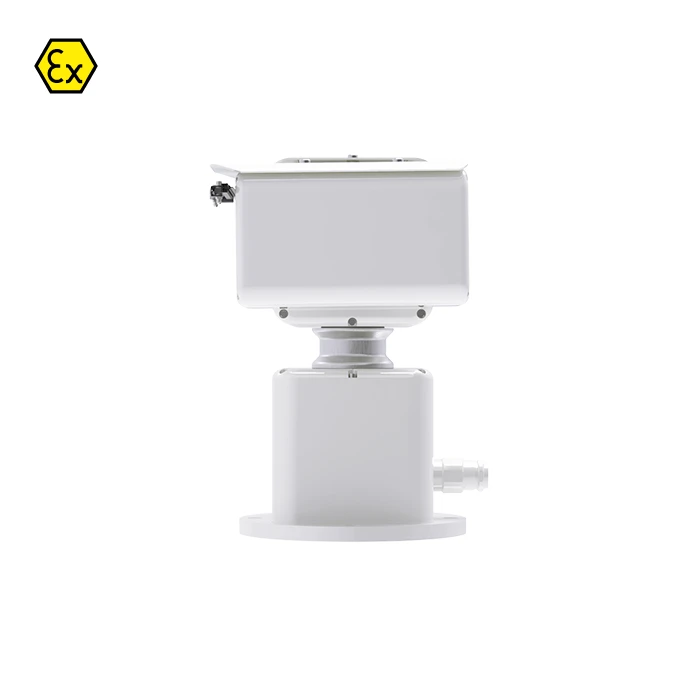

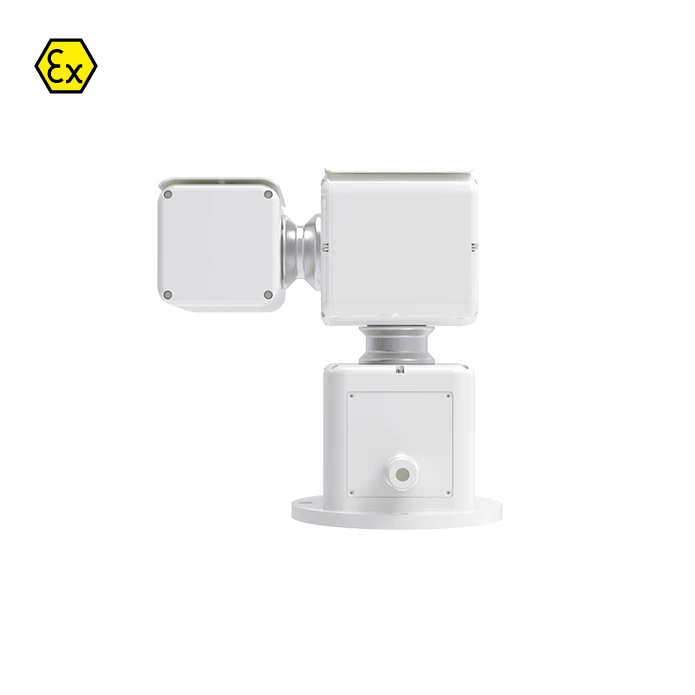

Explosion Proof Full HD IP Pan/Tilt/Zoom Camera System
This explosion-proof Full HD IP Pan/Tilt/Zoom camera has been specially developed for use in hazardous areas where there is a risk of gas or dust explosions. Certified according to IECEx, ATEX, KCs and TS, the camera is designed to withstand demanding environments such as coastal areas, ships, power plants, steel mills, cement factories and other dust explosion zones. The camera has Ex certification for dust (Ex tb IIIC T85˚C Db, Zone 21 & 22) and is made to withstand extreme conditions. With a 100% gear-based rotation mechanism, the camera offers exceptional durability, making it ideal for areas with high vibration. It is also equipped with a built-in intelligent encoder and a high-performance stepper motor, making it perfect for AI-based video surveillance. The camera has a high-quality aluminum die-casting body, and is specially treated with a powder coating that is optimized for protection in harsh industrial environments. The camera offers a 360° infinite pan and tilt functionality, and has an incredibly flexible pan/tilt speed of 0.025°~120°/sec. It is equipped with a Full HD 2 Megapixel, 1/1.9″ high-sensitivity STARVIS CMOS sensor, which provides excellent image quality. The zoom function is powerful with a 36x optical zoom and 32x digital zoom, combined with a high-performance hybrid infrared LED system that provides a maximum visible range of up to 100 meters. The camera has an IP66 protection class and can withstand both dust and water, and is designed for easy installation with cable outputs of 3/4″ NPT and 1/2″ NPT. It supports ONVIF, which allows it to be integrated into various video surveillance systems.
Technical specifications
- Ex certifications: IECEx, ATEX, KCs, TS
- Explosion protection (dust): Ex tb IIIC T85˚C Db, Zone 21 & 22
- Rotation mechanism: 100% gear type, ideal for high vibration environments
- Intelligent encoder and high-performance stepper motor, suitable for AI video surveillance systems
- Specialty powder coatings for coastal areas, ships, power plants, steel mills, cement factories, etc.
- Construction: High quality aluminum die-casting body
- Salt water spray test: KS C IEC 60068-2-52
- Input protection: IP66
- Pan / Tilt Range: 360° infinite
- Pan/tilt speed: 0.025°~120°/sec
- 255 Presets / 8 Tours / 8 Groups / 8 Swings
- Resolution: Full HD 2 Megapixel
- Sensor: 1/1.9″ high-sensitivity STARVIS CMOS sensor
- Focal length / Zoom: 6~216mm / Optical 36x and Digital 32x
- Hybrid infrared LED: Max. range 100 meters
- Cable outputs: 3/4″ NPT and 1/2″ NPT
- Supports ONVIF
Approvals
- IECEx, ATEX, KCs, TS approvals
- Explosion protection for dust (Ex tb IIIC T85˚C Db, Zone 21 & 22)
