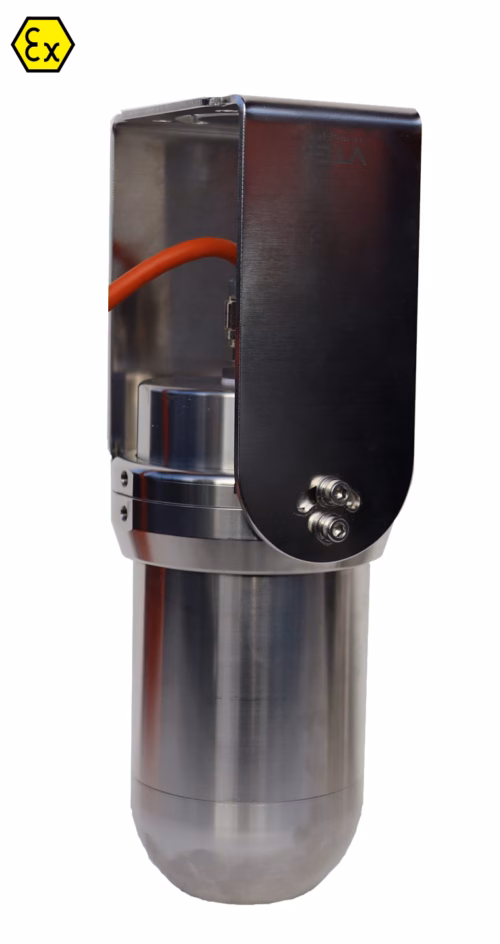

EX Camera IP Zoom SST for crane zone 1 &2, 5m cable
EX Camera IP Zoom SST for crane zone 1 &2, 5m cable - Image 2

EX Camera IP Zoom SST for crane zone 1 &2, 5m cable

Logg inn for å se priser

SKU 351945 Category Tags ,

Description

30x Zoom 2MP Full HD IP Network Camera

This 30x Zoom Full HD IP network camera is explosion-proof and designed for use in hazardous areas with the potential for both gas and dust explosions. The camera is certified according to IECEx, ATEX, KCs, JEPX, NEPSI, and TS, and has Ex certification for both gas (Ex d IIC T6 Gb, Zones 1 & 2) and dust (Ex tb IIIC T85˚C Db, Zones 21 & 22). The electropolished AISI 316L stainless steel construction and holistic structural design without welding make the camera both durable and resistant to harsh industrial conditions.

With a Full HD 2 Megapixel resolution and a 1/2.8″ Sony STARVIS CMOS sensor, the camera provides excellent image quality, even in low light. The camera offers an impressive optical zoom of 30x and digital zoom of 32x, providing flexibility in monitoring both nearby and distant objects. With Wide Dynamic Range (WDR) and Digital Noise Reduction (2D + 3D), it delivers clear images in both very bright and dark areas, and is also equipped with a Day & Night (ICR) function to ensure reliable operation around the clock.

The camera has a wide range of features including Intelligent Motion Detection, Privacy Mask Function and OSD support for easy customization. It is designed with a 1 x 1/2″ NPT cable entry and supports PoE Class 3 (IEEE 802.3af) for easy and efficient installation.

Technical specifications

  • Ex certifications: IECEx, ATEX, KCs, JEPX, NEPSI, TS
  • Explosion protection (Gas): Ex d IIC T6 Gb, Zone 1 & 2
  • Explosion protection (Dust): Ex tb IIIC T85˚C Db, Zone 21 & 22
  • Material: Electropolished AISI 316L stainless steel
  • Degree of protection: IP67
  • Ambient temperature: -40°C ~ +65°C
  • Resolution: Full HD 2 Megapixel
  • Sensor: 1/2.8″ Sony STARVIS CMOS sensor
  • Min. lighting: Color: 0.005 lux, Black/White: 0.0008 lux
  • Focal length / Zoom: 6~216mm / Optical 30x, Digital 32x
  • Day & night (ICR)
  • Wide Dynamic Range (WDR)
  • Digital Noise Reduction (2D + 3D)
  • Privacy Mask Function
  • Intelligent Motion Detection
  • OSD Support
  • Cable entry: 1 x 1/2″ NPT
  • Supports ONVIF (Profile-S)
  • PoE Class 3 (IEEE 802.3af) support

Approvals

  • IECEx, ATEX, KCs, JEPX, NEPSI, TS approvals
  • Explosion protection for gas (Ex d IIC T6 Gb, Zone 1 & 2)
  • Explosion protection for dust (Ex tb IIIC T85˚C Db, Zone 21 & 22)



Additional information

Minimum illumination

0.03Lux
Bit rate control

CBR / CVBR
Network Protoco

TCP/IP, UDP, IPv4/v6, HTTP, HTTPS, QoS, FTP, UPnP, RTP, RTSP, RTCP, DHCP, ARP
Intelligent Image Analysis

Tampering / Intelligent Motion / Intrusion detector
ONVIF

support
video Streaming

Quad Stream (H.264/H.265 x 3 / MJPEGx1)
Input Voltage

PoE Class 3(IEEE 802.3af)
Frame Rate

Max 30fps
Protection Degree

IP66
EX kamera

IP camera, Zoom camera
Ex Certification

IECEx / ATEX / JPEx / NEPSI / KCs / CE / FCC / KC
Smart Codec

Hi-Stream
Compression

H.264(Baseline/Main/High Profile) / H.265(Main Profile) / MJPEG
Window Materia

Fully tempered plate glass
Kunde segment

Crane, EX camera, Marine offshore
EX Zoom kamera

EX IP
Connector

Ethernet 10/100/1000base-T(RJ-45)
Weight

Approx. 3 kg
Cable Outlet

1 EA(NPT 1/2")
Material

AISI 316L Stainless Steel / Electrolytic Polishing
Lens

2.7 ~ 12 mm
Effective Pixels

2 megapixel
Resolution

1920×1080, 1440×1080, 1280×1024/720, 1024×768, 800×600/480, D1, 640×480, 400×240, CIF
Size

107.2(W) x 148(H) x 187(L) mm
Angle of View

100° ~ 33°(H)
Wide Dynamic Range

True WDR
