ExCam XI80

Beskrivelse

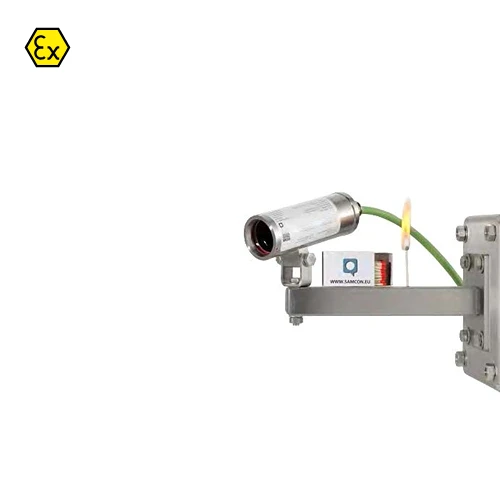

ExCam XI80

The ExCam XI80 is a powerful thermographic camera with an integrated infrared thermometer and auto focus for use in potentially explosive areas.

It delivers excellent infrared images (80x80p) in a temperature range from -20°C to 900°C.

In addition, the thermal imaging camera has extensive analysis functions (e.g. thermal analysis with hot and cold spots).

The Excam XI80 can not only see where it is hot, it can also measure the temperature exactly; and all that in an 8 millisecond interval (Real Time Recording).

Thermal camera in stainless steel housing in accordance with Directive 2014/34/EU (ATEX) and IECEx.

Power supply: 10-30V DC; Power consumption: max. 2.5 W

Uncooled microbolometer, spectral range 8 µm to 14 µm

Temperature range: -20°C to100°C, 0°C to 250°C, 450°C to 900°C

Thermal sensitivity: 100 mK

Optic: 12°, 30°, 55° (standard) or 80°

Optical resolution: 80 x 80p

Explosion protection (gas): Ex II 2G Ex db IIC T6 Gb

Explosion protection (dust): Ex II 2D Ex tb IIIC T80°C Db

Protection level: IP 66/68 (IEC / EN 60529)

Ambient temperature: 10°C < Tamb < +50°C

HS Code 90251900
