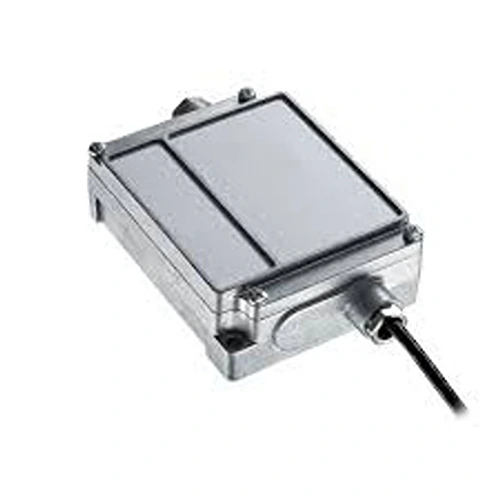

PIF Industrial Process Interface

Beskrivelse

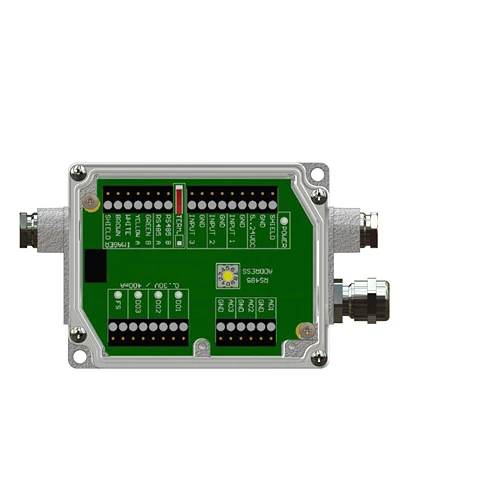

High performance extension for the analog and digital alarm in- and outputs to allow 3 additional in- and outputs of each, without cable for aligned mount of up to 3 PIFs

in connecting box IP65, for applications in safe areas,

500 VACeff isolation voltage between camera and process

Analog outputs: 3x 074…20mA or 0…10V

Digital outputs: 3x relays max. 30V/ 400mA

Analog or digital inputs: 3x 0…10V or 24V

Fail-safe-output: 1x relay max. 30V/ 400mA

Power supply: 24VDC

Ambient temperature: -30°C…+85°C

Product group: C, tariff number: 9025 9000
