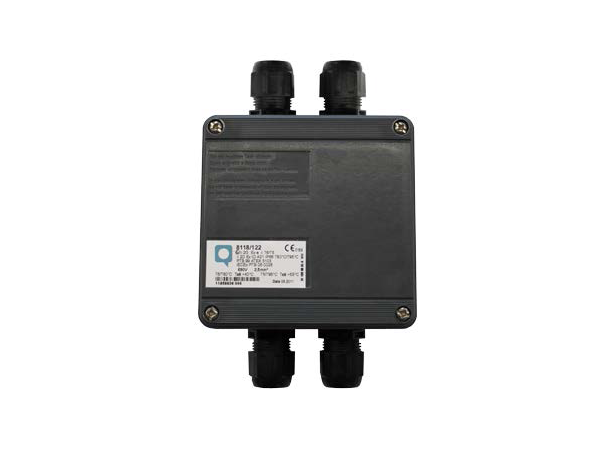

Ex TB-4 Terminal Box for ExCam Series

Description

ExTB-4 Terminal Box for ExCam Series

Model: T12-M20-M20-M20-M20-M20 Ex.- protection (gas): Ex II 2 G Ex eb IIC T5 Gb Ex.- protection (dust): Ex II 2 D Ex tb IIIC T95°C Db Degree of protection (IP): IP66 Ambient temperature: -60 ° C …. +55 ° C Dimension: 145mm x 145mm x 71mm (HWD) Housing Material: Polyester resin reinforced Connection cross section: 2.5 mm² 10 pcs. terminal PT 2.5 (1-10) 3 pcs. terminal PT 2.5 PE 4 x M20 Ex-e glands for non-armored cables (BK) Cable diameter range: 7 … 13 mm
